Summary: Every process generates results – but not every step adds value. Value Stream Mapping (VSM) and Process Mapping both aim to make workflows more transparent, yet they operate at different levels of abstraction. VSM focuses on the big picture: end-to-end value delivery, lead times, and cross-functional waste. Process Mapping, in contrast, zooms in on specific workflows, exposing the sequence and structure of individual tasks. Both tools drive structured improvement – not buzzword-based activity. While Process Mapping reveals bottlenecks within a function, VSM highlights how these functions interact and where time, value, or resources get lost. It’s not about choosing one over the other – it’s about understanding when and why to use each. This article shows how VSM and Process Mapping serve different but complementary roles – and how applying both can help uncover untapped process potential in your company.

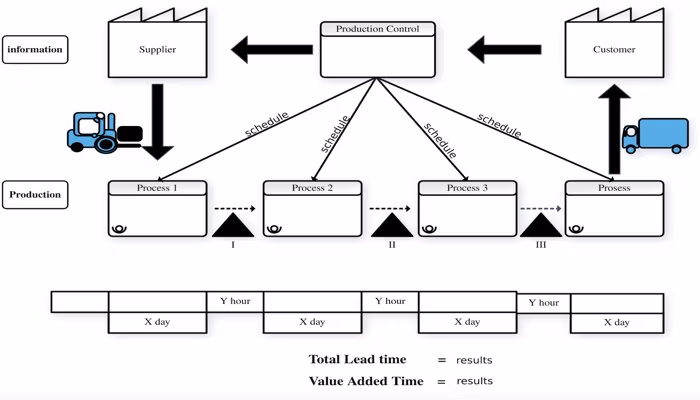

Value Stream Mapping
Value Stream Mapping (VSM) is a strategic approach used to visualize and analyze the end-to-end process flow within a company, from the customer’s perspective. This method maps out each stage of production or service delivery, examining inputs, outputs, and the flow of information and resources. By distinguishing between value-adding and non-value-adding activities, VSM helps identify inefficiencies such as delays, bottlenecks, and waste, giving businesses a clear view of areas that need improvement.
The true strength of VSM lies in its ability to uncover waste at every stage of the process. It highlights redundancies, unnecessary steps, and delays that may be hindering performance. With this information, companies can streamline their workflows, reduce costs, and better align with customer demands, resulting in improved operational efficiency and increased customer satisfaction.
Benefits of VSM
VSM is a proven lean-management method used to analyze, design, and manage the flow of materials and information required to bring a product to a customer. It equips decision-makers with data-driven clarity to drive operational excellence.
Process Insight: Offers a full-spectrum overview of processes, revealing inefficiencies, redundancies, and constraints in real-time operations.
Informed Decisions: Supports data-backed prioritization by visualizing the entire workflow, enabling systematic targeting of root causes instead of symptoms
Continuous Improvement: Creates a solid foundation for ongoing adjustments in line with business and customer needs. A Kaizen event can build on VSM insights to implement rapid improvements in identified areas of waste, driving immediate, practical changes.
Interdepartmental Cooperation: Establishes shared understanding across departments by mapping interdependencies and hand-offs transparently
Waste Reduction: Highlights non-value-adding activities such as waiting, overprocessing, or unnecessary movement
Increased Customer Value: Shortens lead times and enhances product or service reliability, contributing directly to improved customer experience and loyalty
How can I make value stream mapping more actionable on the shop floor?
✅ Streamline your workflows with flowdit – checklists made for manufacturing operations
Process Mapping
While VSM provides a broader perspective, process mapping focuses on individual steps within a specific process. This method breaks down each task in detail, identifying potential inefficiencies at the operational level. Unlike VSM, which looks at the entire value chain, process mapping zooms in on each action, decision point, and flow within a process, making it ideal for pinpointing micro-level inefficiencies.
Process mapping is especially useful for operational teams looking to optimize specific tasks. Engineers and process managers use this tool to identify bottlenecks, delays, and redundancies, which can be removed or streamlined to improve performance. When combined with VSM, process mapping offers a more granular look at the overall system, allowing businesses to address both specific tasks and larger-scale inefficiencies.
Targeting Operational Issues with Process Mapping
Process mapping works best when teams use it to investigate specific pain points in operations. Start by selecting a process that causes recurring delays, quality issues, or cost overruns. Involve employees who work directly in that area – they understand the actual steps, exceptions, and workarounds. Use symbols and swimlanes to capture each action, handoff, and decision point. Look for inconsistencies, redundant steps, and unclear responsibilities. Address one issue at a time with short, controlled improvement cycles. Assign clear owners for each change and measure results quickly. By focusing on specific problems instead of general assumptions, your team can drive precise, measurable improvements that build confidence and reduce resistance to change.
Benefits of Process Mapping
Process mapping provides a structured view of how work gets done. It enables leaders to identify weak points, standardize execution, and drive efficiency across the organization.
Clear Process Insight: Breaks down each process step, making delays, handoffs, and redundancies visible
Improved Communication: Creates a shared visual reference that aligns departments and reduces misunderstandings.
Streamlined Workflows: Eliminates non-essential activities and supports task standardization for consistent results.
Employee Training: Acts as a practical guide for onboarding, reducing ramp-up time and improving role clarity.
Supports Continuous Improvement: Establishes a baseline for measuring progress and identifying areas for regular improvement.
Agility & Flexibility: Helps teams adapt quickly by making it easier to update and realign processes as priorities shift.
VSM vs. Process Mapping: Side-by-Side Comparison
| Process Mapping | Value Stream Mapping (VSM) | |
|---|---|---|
| Scope | Focuses on a single process or sub-process | Covers the entire value stream from customer request to delivery |
| Purpose | Analyze specific workflows, tasks, and decision points | Improve the overall flow of value and reduce system-wide waste |
| Level | Micro – operational level | Macro – cross-functional or company-wide level |
| Detail | High task-level detail: actions, roles, decisions | Moderate detail with focus on flow, delays, and handoffs |
| Key Use Cases | Onboarding, process standardization, solving local inefficiencies, SOP development | Lead time reduction, lean transformation, uncovering hidden delays |
| Output Format | Flowchart with symbols, swimlanes, and task-level actions | Map with process boxes, data boxes, timelines, material/information flow |
| Typical Users | Process engineers, quality teams, team leads | Plant managers, operations leaders, cross-functional teams |
| Improvement Focus | Eliminate redundancies, reduce variation, clarify responsibilities | Identify and eliminate delays, excess inventory, coordination issues |
Choosing the Right Tool: A Practical Example of VSM vs. Process Mapping in Manufacturing
A mid-sized manufacturer of metal components struggles with late deliveries and rising costs. The owner suspects that the problem lies deeper than a single step in the process.
To investigate, the operations manager starts with a process map of the CNC machining station. This reveals that setup times vary drastically between operators and that tool changes cause frequent delays. The company introduces a setup standard and retrains staff, reducing downtime at this station.
But the issue persists. Orders still miss deadlines. That’s when the team decides to step back and create a value stream map of the entire order fulfillment cycle – from receiving customer orders to shipping finished goods. This broader view uncovers issues outside the machining process:
Sales enters orders manually, causing delays before production even begins.
Finished parts sit in staging for up to two days before shipping.
Quality checks happen late in the process, often requiring rework and disrupting flow.
While the process map helped fix one station, the value stream map exposed disconnected systems and poor coordination across departments. Based on the VSM insights, the company implements earlier quality checks, digitizes order entry, and synchronizes logistics scheduling.
Within six weeks, lead times drop by 20%, and on-time delivery improves by 35%.
Key takeaway
Use process mapping when you need to fix specific steps in a workflow. Use value stream mapping when delays or waste come from the broader system. Both tools have power – but only when applied to the right level of the problem.
How to integrate VSM and Process Mapping into your Business Strategy
To drive long-term performance, companies must align both Value Stream Mapping (VSM) and process mapping with their business strategy. Use VSM to define strategic priorities—such as reducing lead time, improving customer delivery, or lowering system-wide waste. Once the high-level value streams are visible, deploy process mapping to fine-tune individual workflows that support those goals. Each tool serves a different layer of decision-making: VSM guides strategic direction, process mapping supports tactical execution. Assign dedicated teams to both levels and connect their insights through regular cross-functional reviews. Use data from mapping sessions to set operational KPIs that reflect strategic objectives. This alignment ensures that daily improvements contribute directly to long-term value creation and competitive strength.
flowdit: Your Software Solution for Process Optimization
flowdit helps companies take control of complex operations by combining process mapping and value stream mapping (VSM) in one powerful tool. Instead of using isolated tools like Lucidchart, flowdit integrates diagrams directly with operational data to support real-time improvements.
Detailed Process Mapping Built In
With flowdit, teams can map workflows step by step, identify delays, eliminate double work, and simplify task coordination. Interactive checklists, mobile input, and built-in task features make it easier to spot issues and adjust processes immediately – right where the work happens.
Value Stream Mapping Across Operations
Beyond individual workflows, flowdit highlights the full value stream – connecting activities across departments and uncovering non-value-adding steps. Dashboards, live metrics, and automatic reports make inefficiencies visible and help teams focus on what drives performance.
From Task-Level Fixes to Strategic Change
flowdit supports both day-to-day process corrections and company-wide transformation. By linking micro-level process insights with a clear overview of the entire value stream, teams can reduce waste, improve flow, and create a continuous improvement culture based on real data.
FAQ | VSM | Process Mapping
What is Value Stream Mapping (VSM) ?
VSM is a lean management method used to depict the flow of materials and information throughout a process. It helps identify how these flows interact and where inefficiencies may exist. As a lean manufacturing method, it serves to analyze, design, and control the flow required to deliver a product to the customer.
What are the key symbols used in value stream mapping?
VSM uses standardized symbols to represent process steps, inventory, data flow, communication, and timelines. Common symbols include process boxes, data boxes, arrows for flow, and icons for delays or push/pull systems.
What are the key elements of value stream mapping?
- Customer: A central part of the value stream, as all activities should ultimately create value for them.
Supplier: Plays a crucial role by providing the inputs required to begin the process.
Product Flow: Represents the main structure of the map, showing how the product moves through each step of the process.
What is the most important step in value stream mapping?
Step 1 : Identify and analyze value
Before creating a Value Stream Map, it’s crucial to understand what qualifies as a value-adding activity. These are actions that:
Deliver something the customer actually wants,
Involve processing or transforming materials or information into the final product.
When should you use value stream mapping?
You can apply it to analyze the current state (known as value stream analysis or VSA) and to design the future ideal state (known as value stream design or VSD).
What is process mapping?
Process mapping is a visual method for outlining workflows and procedures. It involves creating a diagram often called a flowchart, process flow, or workflow map – that clearly illustrates how a process functions. The key objective is to present complex processes in a simple, easy-to-understand format.
How do I choose between process mapping and value stream mapping?
Use process mapping when you need detailed insight into a specific workflow. Choose value stream mapping when your goal is to understand the end-to-end flow of value and identify broader inefficiencies across departments or systems.
When should I use process mapping?
Process mapping is ideal when you need a detailed understanding of how a specific process works. a process map is useful for onboarding new team members, standardizing a process, or identifying bottlenecks. By visualizing each step, you can spot delays, redundancies, or areas that need clarification. Ready-to-use templates can help you get started quickly and structure the process effectively.
Is there value in using process maps alongside value stream maps?
Absolutely. Using both together gives a detailed and strategic view- process maps reveal step-level details, while value stream maps show the overall flow. This combination helps pinpoint inefficiencies and drive targeted improvements.
Can process mapping be used in digital transformation projects?
Yes, process mapping is essential in digital transformation. It helps identify which processes can be automated, optimized, or redesigned, ensuring that technology aligns with actual business needs.
Is value stream mapping only for manufacturing processes?
No, value stream mapping is widely used beyond manufacturing, including in healthcare, logistics, software development, and service industries. Any process that delivers value to a customer can benefit from VSM.
